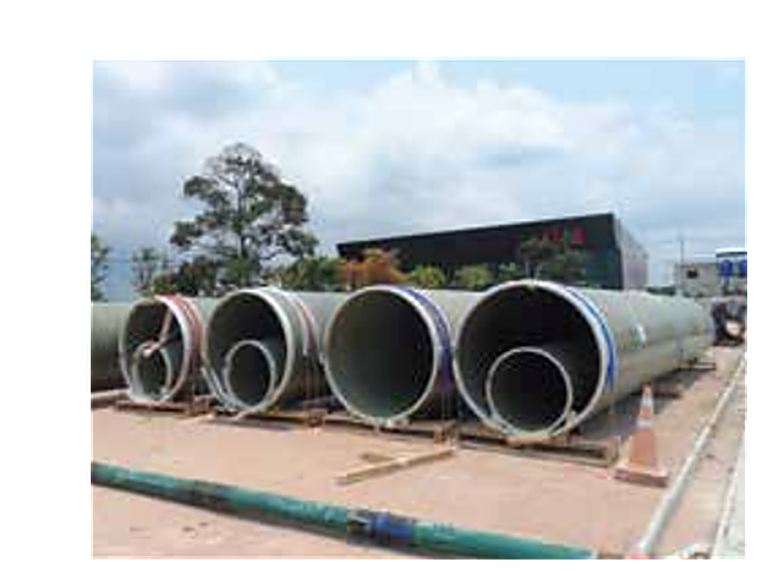

NOV Glass Reinforced Epoxy Piping

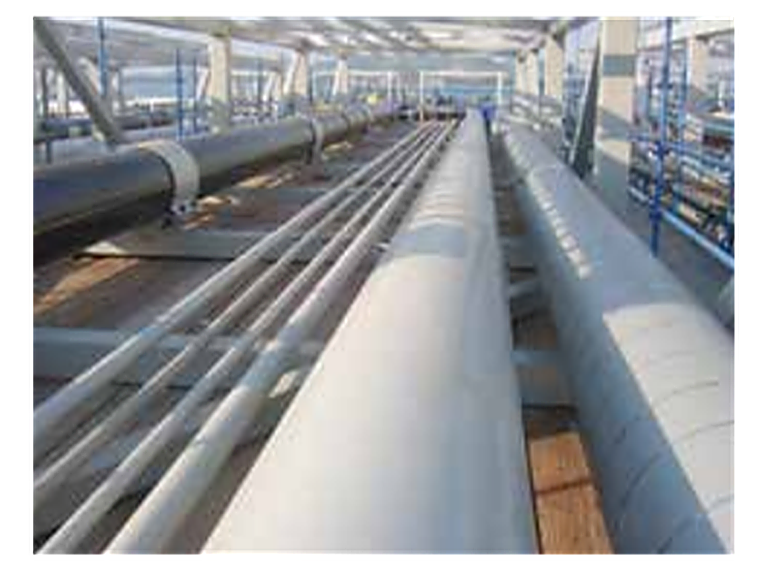

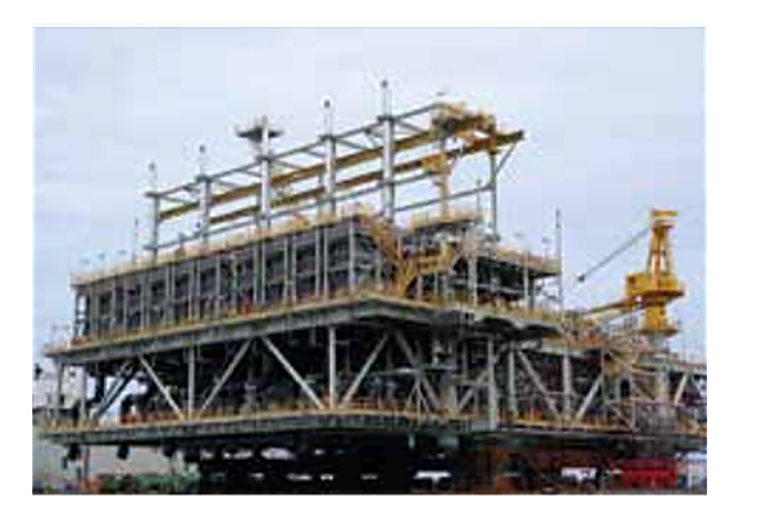

Historically, offshore production platform, drilling rig and FPSO owners and operators have had to face the grim reality of continuously replacing most metal piping because of severe corrosion. This has resulted in piping systems costing two or three times the original investment since steel and metal pipe systems are very costly to maintain.

NOV FGS® GRE pipe systems are the cost-effective, maintenance-free and lightweight solution that provides corrosion-free and erosion-free operation during the service life of the vessel.

NOV FGS® is the combination of a series of product lines, bringing together over 60 years of “time-tested” composite pipe experience to the Oilfield, Chemical/Industrial and Petroleum market. The broad range of temperatures, pressures and corrosion barriers allow for the best match between the product and these applications.

Key Advantages GRE has a Price 25% Less than 6MO Steel GRE Reduces Operating Costs Due to Less Energy Needed to Pump Fluid Through the Smooth Internal Bore GRE is Corrosion-Free and Erosion-Free GRE is Easy and Cheaper to Install than Steel Systems GRE is Non Hazardous for the Environment and Personnel GRE is Easy to Repair GRE has Low Maintenance Costs GRE Reduces Amount Of Hot Work Wide Range of Industrial Applications Refinery Chemical & Industrial Power Plant Oilfield Pulp & Paper HVAC Water & Wastewater Food Processing

Bondstrand 2000 is recommended for dilute acids and caustics, produced/hot water, industrial waste and condensate returns. Bondstrand 2000 piping system is designed and rated to meet requirements of ASTM D2996 and ASTM D2310, meeting criteria for Type 1, Grade 1, Class F, National Sanitation Foundation Standard 61 (Drink-ing Water Components) and MIL-P-29206A for aviation fuel. Product recommended for hot water service, such as condensate return lines

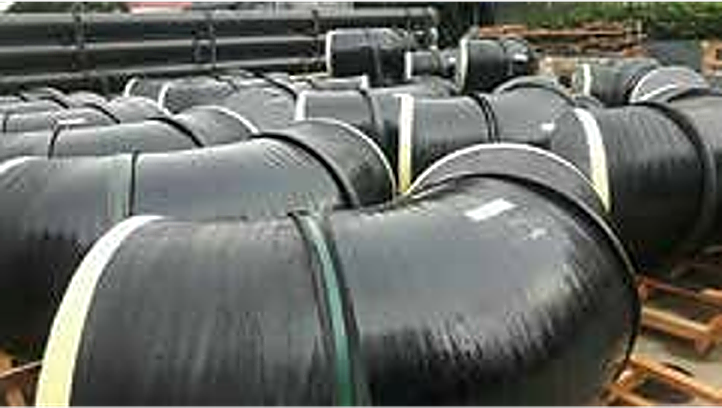

Filament-wound pipe with Quick-Lock adhesive-bonding systems for close tolerance systems. Aromatic Amine cured epoxy for high toughness and temperature performance. A wide range of lined filament-wound (GRE) fittings are available.

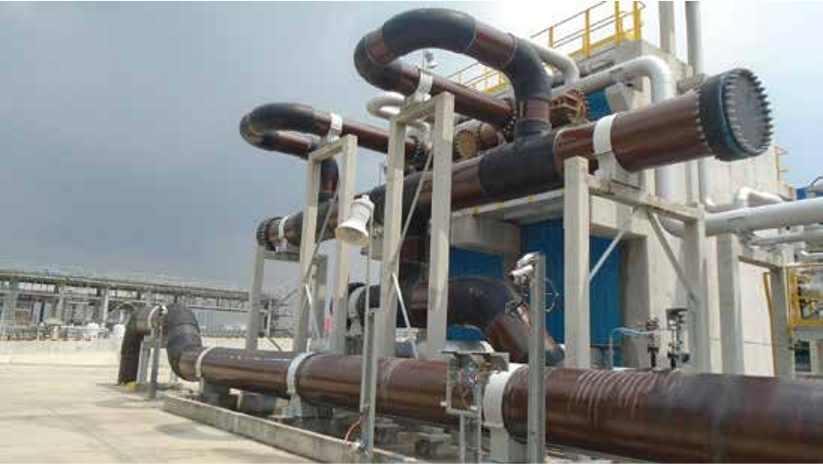

Bondstrand 2400 is recommended for salt waters, brackish water, fi protection, potable/waste water and sewage, oil field reinjection, crude oil transmission and mild chemicals. Bondstrand 2400 piping system is designed and rated to meet require ments of API 15LR, ISO 14692 and ASTM D2310. Taper/Taper adhe sive bonded joint used for maximum pressure performance throughout product diameter and pressure range. Key-Lock mechanical joint can be used on pipe connections for ease and speed of assembly. Fittings in smaller diameters may be used over wide range of pressure classes

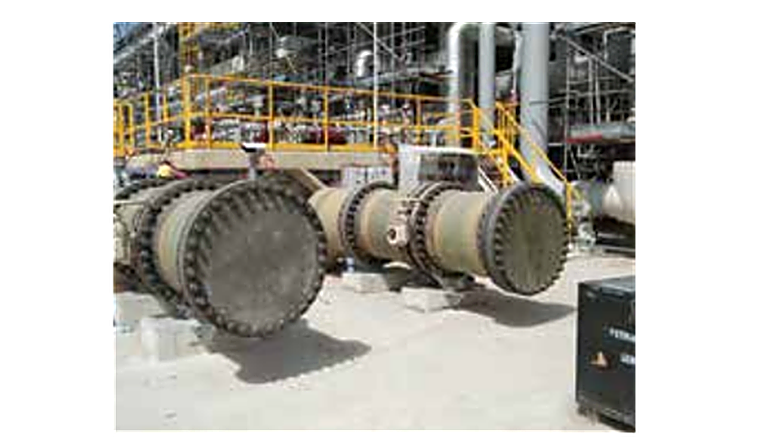

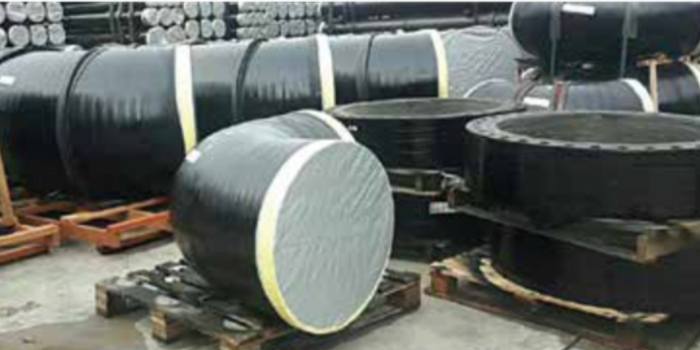

Filament-wound (GRE) pipe with an integral Taper female x shaved spigot adhesive bonded joint or Key-Lock integral female x male mechanical joint. Fittings are GRE with integral Taper female bell ends with a wide range available. Product line is well suited for higher pressure applications or where higher service factors are needed.

Bondstrand 4000 piping system is designed for aggressive chemic service where epoxy products are suited (solvents, alkalis and non-oxi dizing acids).

Bondstrand 4000 piping system is designed for aggressive chemic service where epoxy products are suited (solvents, alkalis and non-oxi dizing acids). Meets USFDA requirements for food processing u 21CFR175.105 and 21CFR177.2880. Quick-Lock joining system allo close tolerance fabrication of system.

Filament-wound (GRE) pipe with Quick-Lock adhesive-bonding sys tems for close tolerance systems. Aromatic Amine cured epoxy for hi toughness and temperature performance. A wide range of lined filament-wound (GRE) fittings are available

Bondstrand 5000 is available in 1”-16” diameters with temperat range up to 200°F (93°C). This is a custom Vinyl Ester pipe available Asia, Europe and South America and is recommended for most chl nated and acidic mixtures. Bondstrand 5000 is a custom vinyl es pipe available in Asia, Europe, and South America . It utilizes t Quick-Lock straight/taper adhesive-bonded joint featuring integral pi stop in bell for predictable, precise laying lengths. Vinylester re matrix recommended for oxidizing acid service and water purificati systems. Specialty resins can be used for services in excess of 200°F (93°C).

Filament-wound Glassfiber Reinforced Vinyl Ester (GRVE) pipe with Quick-Lock adhesive-bonding systems for close tolerance systems. Premium grade resins used for high temperature performance. A wide range of lined filament-wound (GRVE) fittings are available.

Bondstrand Series 7000 fiberglass pipe, fittings and flanges incorporate high-strength conductive filaments to prevent accumulation and discharge of potentially dangerous levels of static electrical charges. Bondstrand 7000 piping system provides electrical conductivity to allow dissipation of electrical charge built up by flow of high-purity, non-conductive fluids, such as Jet Fuel. Unlined construction provided inside-to-outside as well as end-to-end conductivity with co-mingled carbon and glass fibers throughout the pipe wall. Suitable for primary piping within secondary containment (limited access) when connected to ground at discrete location.

Filament-wound (GRE) pipe with Quick-Lock adhesive-bonding systems for close tolerance systems. Aromatic Amine cured epoxy for high toughness and temperature performance. Product designed to provide electrical conductivity to eliminate static electricity accumulation genprovide electrical conductivity to eliminate static electricity accumulation generated by high purity fluids,

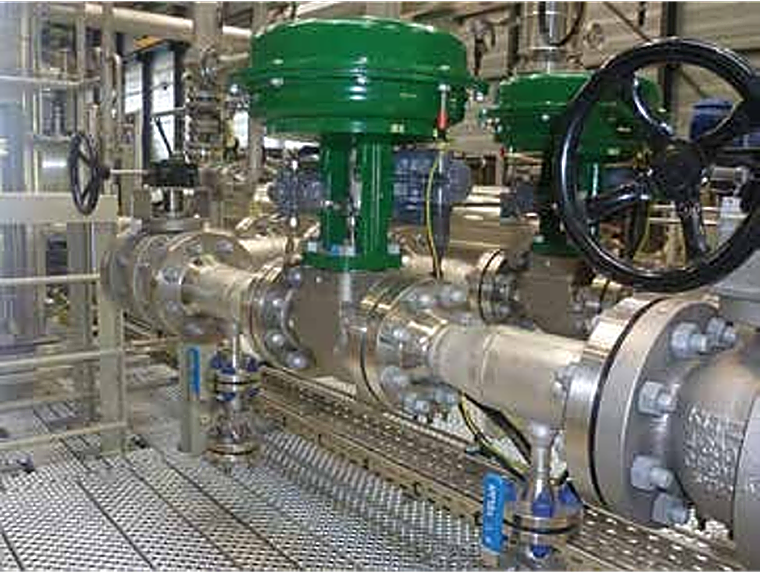

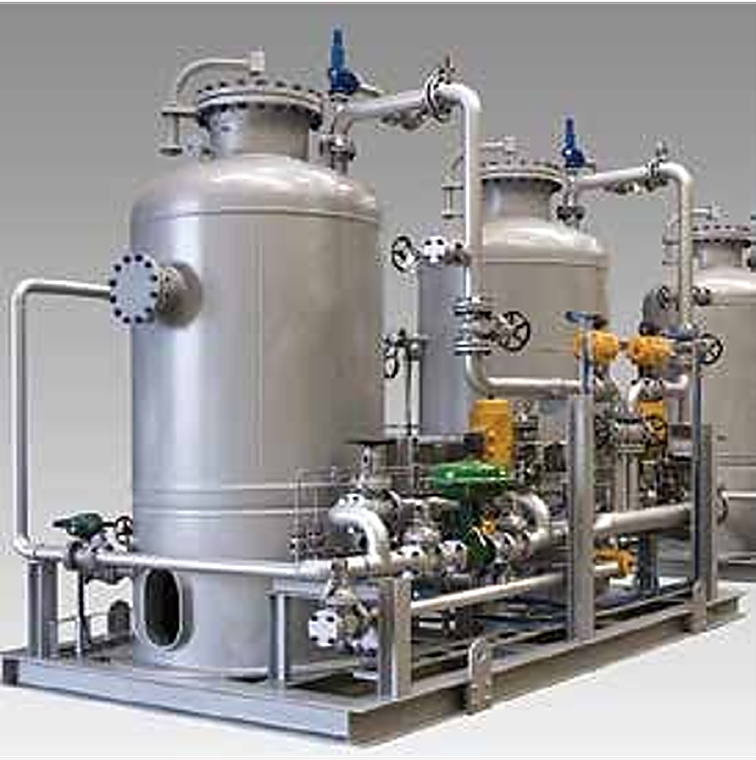

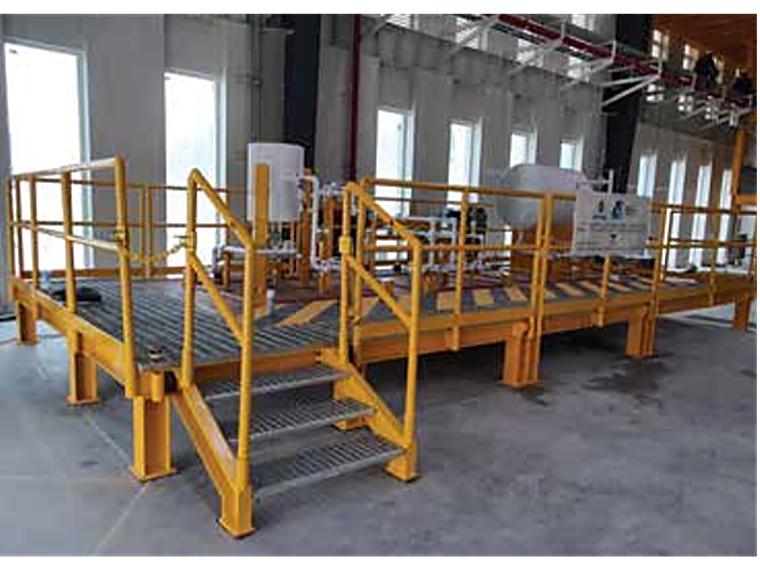

Our skids are custom built for each specific need and is durable and safe. Our manufacturing facility has the capacity to make the quantity and customized designed skids that your job requires. Our manufacturing process is proven and can produce your order in the volume that you need and when you will need it. There is no order that we can not fill. Our staff will sit down with you and review your specifications for your oil field needs

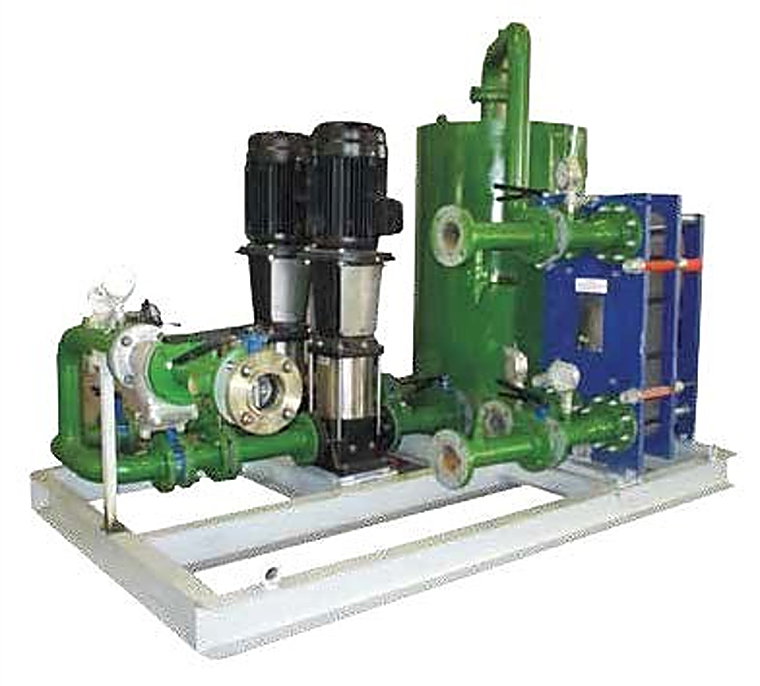

CAE carry out the design fabrication and installation of prefabricated packaged process & utility skid mounted pumping systems for industrial heating cooling & heat recovery. Each prefabricated modular skid is designed specifically for individual customers requirements across a wide range of applications.
