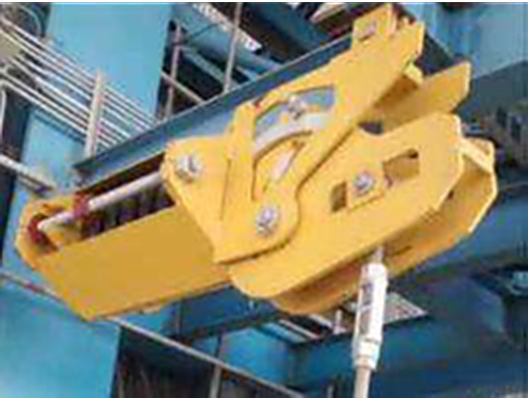

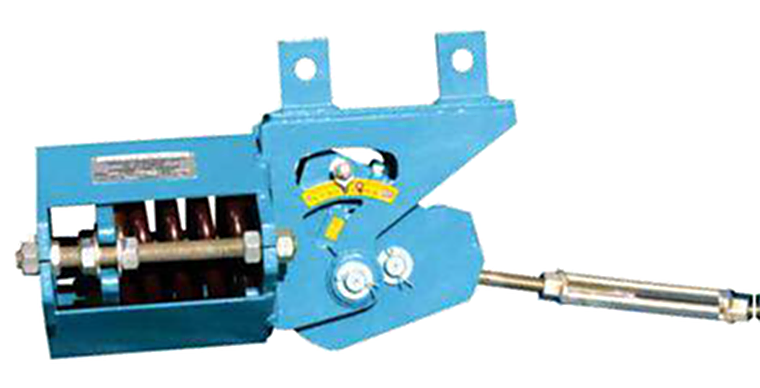

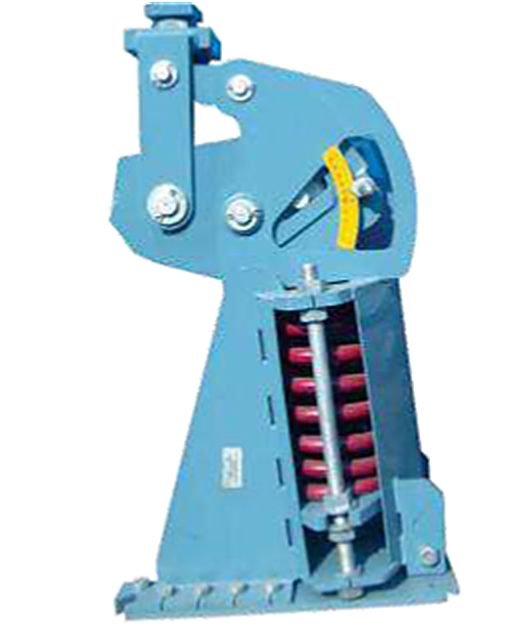

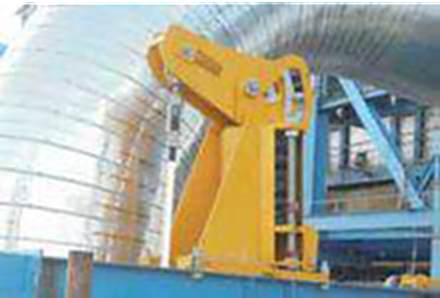

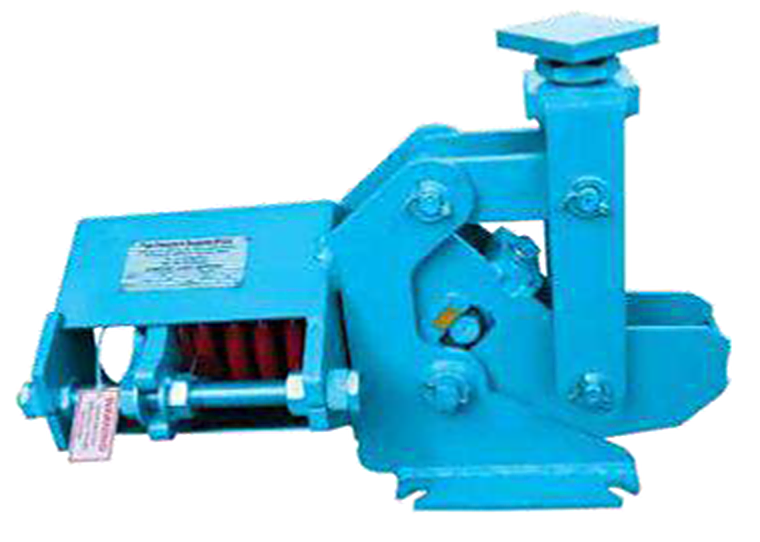

Constant Effort Supports, Spring Hangers & Spring Supports

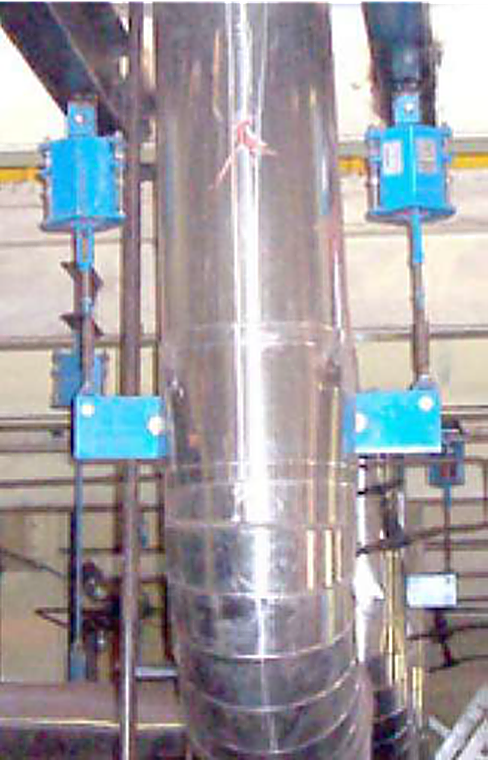

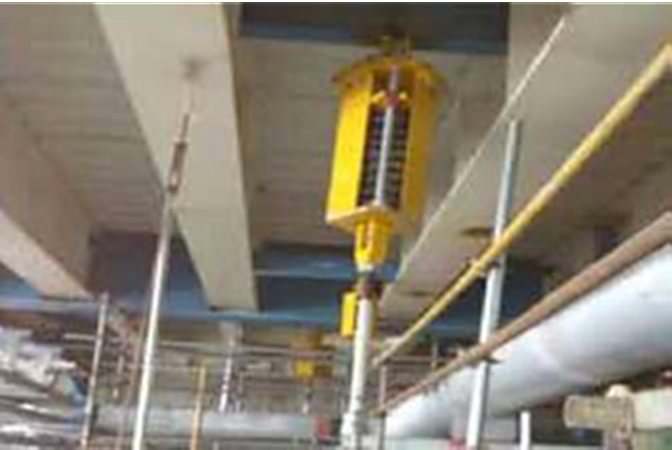

Pipe lines constructed of steel will expand along its axis by an amount equal to its co-eff of thermal expansion when carrying hot or cold fluids. The pipe lines when suspended from Variable effort supports will allow this thermal expansion or contraction relative to structure and at the same time support the weight of the pipe to prevent sagging.

Pipe Hanger & Supports offer a wide range of Variable effort supports right from 3.43 Kgs to 39120 Kgs spread across several travel, load & support configuration types Available in the following variation

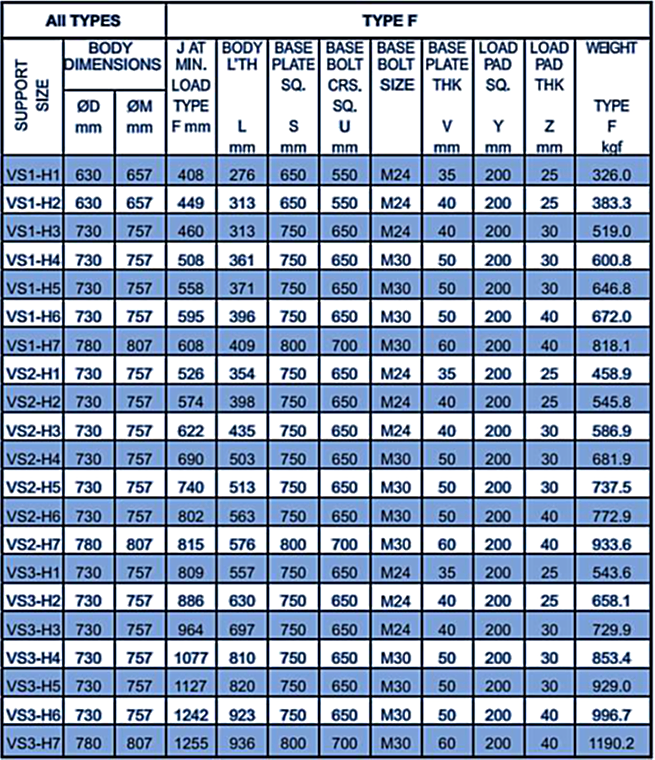

VS1- 35mm VS2-70mm VS3-140mm VS4-210mm VS5-280mm With 29 spring sizes (Size 1 to Size 29) within each travel range. Newly introduced High load variable series to cater for large loads using multi -coil configuration: VS1- 35mm VS2-70mm VS3-140mm With 7 spring sizes ( Size H1 to H7) within each travel range.

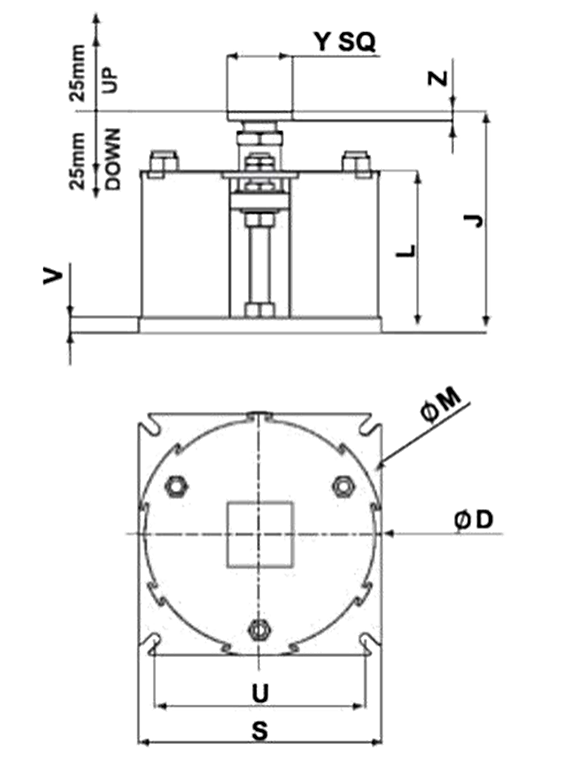

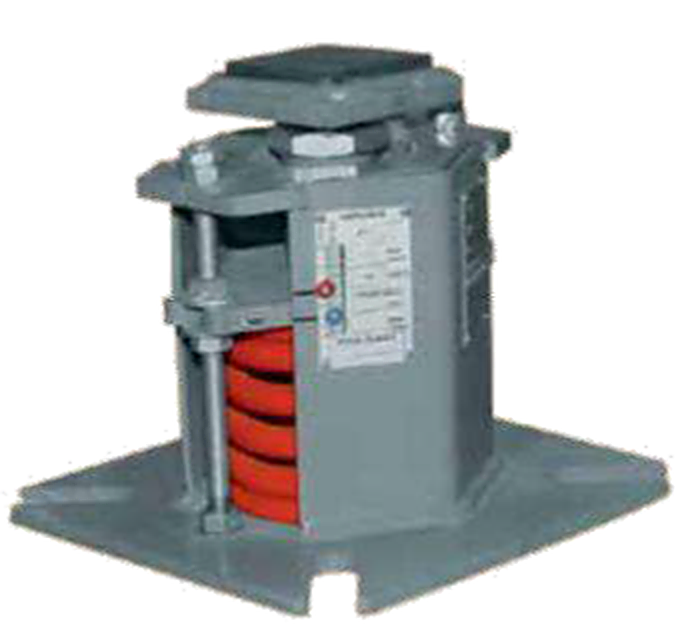

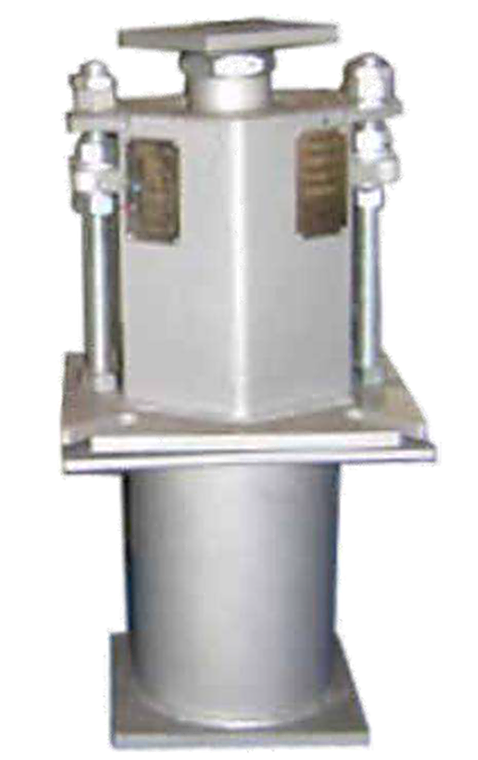

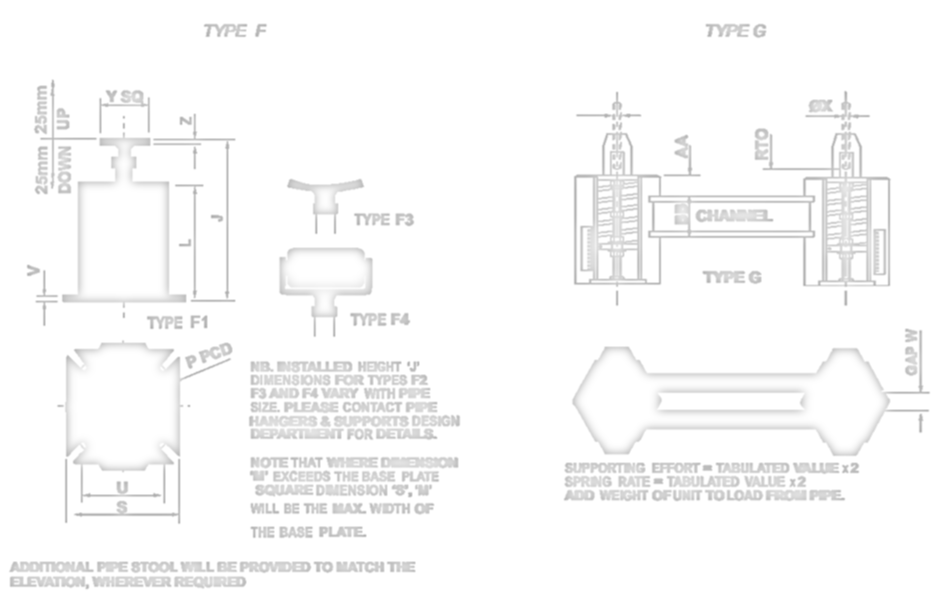

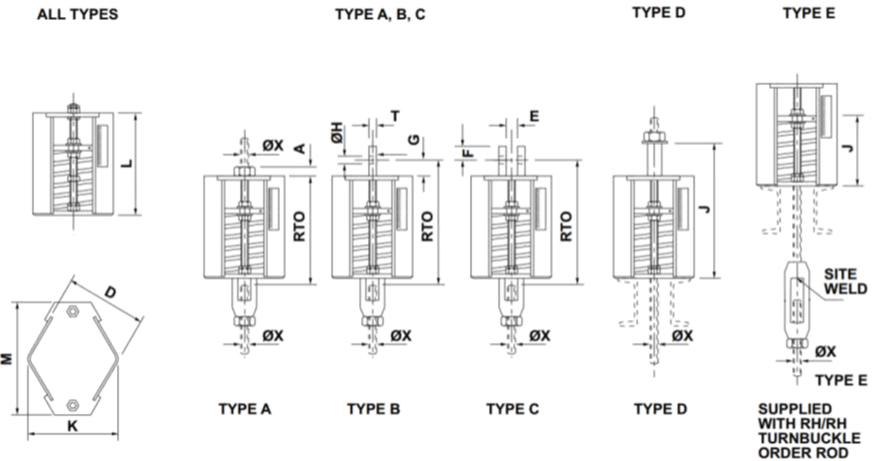

A, B, C Top Supported D Top Adjustable E Extended Support F Base mounted G Trapeze type double

The Pipe Hangers & Supports range of Variable Effort Supports are designed and manufactured to meet the requirements of the following

BS3974 ANSI / ASME B31.1 / ANSI / ASME B31.3 ANSI / MSS SP-58 / ANSI / MSS SP69

Please refer the exhaustive Erection / Commissioning manual for details. This is supplied free of cost along with every dispatch. This manual is also available as a free download from our web site www.pipehangers.in.
